Traditional manufacturing production methods usually require industrial three-dimensional CAD design, hand-made manufacturing, mold CAD design and many other aspects to achieve. Take the hardware industry product switch base as an example, its traditional production cycle is long, bringing a lot of cost to the enterprise. The emergence of 3D printing solves the urgent problem of long product life cycle and changes in market customization requirements. This article will introduce you how 3D CAD software can assist 3D printing technology and effectively perform visual inspection before the official production of switch base.
First, there must be a 3D CAD design software that completes the print target (same as "3D design software "), which requires 3D modeling; secondly, there is another 3D printer. Why do you need 3D CAD design software for modeling? Because it must be based on the computer 3D CAD design model file, the physical product is manufactured through the 3D printer software control system.
Common 3D CAD design software includes foreign SolidWorks, NX, domestic 3D and so on. Because Zhongwang 3D has flexible free-form surface modeling function to meet the needs of enterprises for accurate design, compared with other software , Zhongwang 3D has no complicated commands, is lighter to install, easier to learn and use, and is most suitable for beginners to use. The function of directly outputting to "3D Printer" (Print3D) has been added to the latest 2013 version. This function allows users to interact with 3D printers very quickly and quickly, and print quickly. Therefore, this article chooses to use Zhongwang 3D as the drawing tool for this 3D printing front-end design demonstration. Please refer to the 3D official website for specific drawing steps. .com search "Three-dimensional cad practical tutorial: how to quickly model the switch base" article, do not expand here.
Three-dimensional data modeling of switch base before 3D printing in Zhongwang 3D
The 3D CAD data model has been created through the previous product modeling. Next, the 3D printer can be used to print out the actual switch parts for pre-production part function check:
The first step: Since the 3D print file format is STL, the designed model drawing is first converted to the STL format using the Zhongwang 3D output. Zhongwang 3D has a complete input and output data interface, which is designed to seamlessly interface with 3D printing software . Select the “3D Print†button on the “File†operation interface (as shown below), you can automatically switch to the dedicated 3D printing software interface, without the need to manually convert the STL format for 3D printing programming.
Step 2: Input the switch STL file to the print management software corresponding to the 3D printer. Since the 3D printer has a maximum print size, the position, placement direction, scale, and print attributes of the product can be adjusted according to the printer's reachable range.
Objet's 3D printers can use Objet Studio print management software to make pre-output product adjustments and print materials for print products. After the relevant settings are completed, it can be output to the 3D printer for actual product printing.

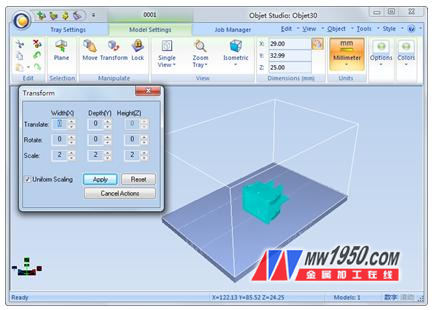

Adjust the proportion of the product, double the size of the original product, adjust the product position, and place it within the print workbench.
Specify the corresponding printed material
Step 3: Print operation by outputting printer function
From the above figure, we can know that the printing processing time is 05:45, the product weight is 109g, the supporting weight is 152g, and the total weight of the required material is 261g. Finally, the printer completes the printing finished product of the switch base.
Through the 3D printing of Zhongwang 3D demonstration auxiliary switch base, it can meet the requirements of the enterprise, and carry out visual and visual simulation physical inspection to avoid waste of production and meet the precise requirements of the enterprise for 3D CAD modeling data. It is worth noting that Zhongwang 3D has recently launched a hand-held function tutorial (http://) to provide the fastest and easiest learning mode. Let beginners get started with proficiency in a short period of time, and master a 3D CAD software technology, which is the best learning tool for 2D cad users to transition to 3D CAD.
Zhongwang 3D 3D CAD/CAM software
Free download:
Hotline: 4008-336-663
Zhongwang 3D is the preferred brand of 3D CAD/CAM software for military enterprises recommended by the Ministry of Industry and Information Technology. It provides cost-effective 3D CAD/CAM solutions for enterprises, modeling, mold, assembly, reverse engineering, sheet metal, 2-5 axis processing and other functions. The modules are available. Efficient and compatible with other 3D CAD software , easy to learn and use, integrated rich parts library, new training tutorials and free download of massive quality 3D CAD drawings, so that you can master 3D design and machining programming more easily.
Download the latest version now and apply for free 3D CAD/CAM & 3D printing technology training.
